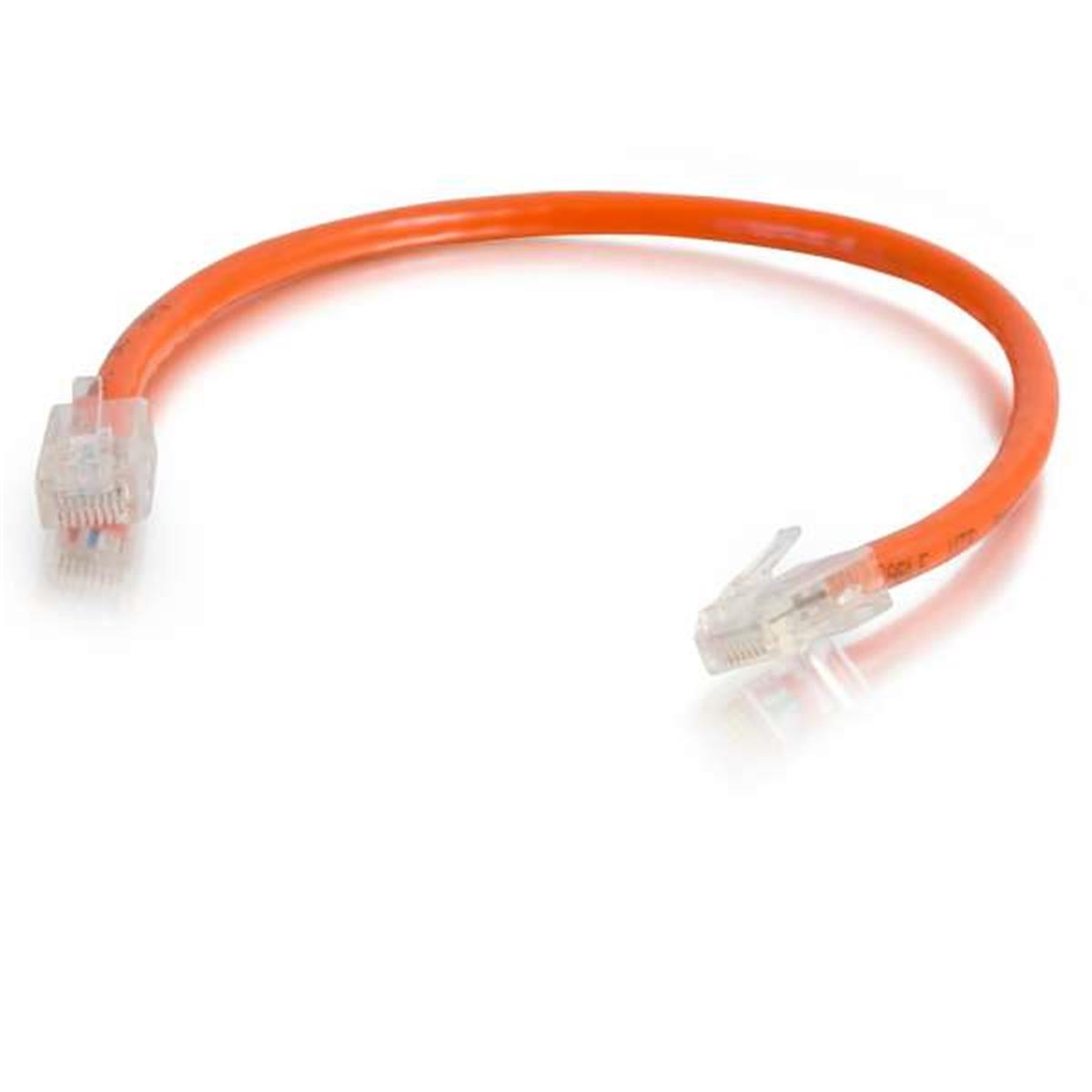

Cables To Go 04197 8 ft. Cat6 Non-Booted Unshielded-UTP Ethernet Network Patch Cable - Orange

For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels.

• Conductor - 24AWG (7/0.20 BC)
• Insulation - HD-PE ID: ø0.98±0.05

• Connector Type - 8P8C (RJ45)
• Contacts - Gold Plated 50µ

• Jacket - PVC
• OD - 6.0±0.15

• Color: Orange
• Conductor DC Resistance: 9.38 Ohm/100m
• Impedance: 100 Ohm
• Capacitance: 5600pf/100m
• Temperature Rating: 75°C
• Voltage Rating: 30V
• Size: 8 ft.
• Weight : 0.216 lbs
